Epigenetic modulation of the NLRP6 inflammasome sensor as a therapeutic modality to reduce necroptosis-driven gastrointestinal mucosal dysfunction in HIV/SIV infection

Abstract

Background

Gastrointestinal (GI) disease/dysfunction persists in people living with HIV (PLWH) receiving suppressive combination anti-retroviral therapy (ART) leading to epithelial barrier breakdown, microbial translocation and systemic inflammation that can drive non-AIDS associated comorbidities. Although epigenetic mechanisms are predicted to drive GI dysfunction, they remain unknown and unaddressed in HIV/SIV infection. The present study investigated genome-wide changes in DNA methylation, and gene expression exclusively in colon epithelial cells (CE) in response to simian immunodeficiency virus infection (SIV) and long-term low-dose delta-9-tetrahydrocannabinol (THC).

Methods

Using reduced-representation bisulfite sequencing, we characterized DNA methylation changes in colonic epithelium (CE) of uninfected controls (n=5) and SIV-infected rhesus macaques (RMs) administered vehicle (VEH/SIV; n=7) or THC (THC/SIV; n=6). Intact jejunum resection segments (~5cm) were collected from sixteen ART treated SIV-infected RMs [(VEH/SIV/ART; n=8) and (THC/SIV/ART; n=8)] to confirm protein expression data identified in the colon of ART-naïve SIV-infected RMs. Transcriptomics data was used to confirm expression of differentially methylated genes. Protein expression of differentially methylated genes and their downstream targets was assessed using Immunofluorescence followed by HALO quantification.

Results

SIV infection in ART-naïve RMs induced marked hypomethylation throughout promoter-associated CpG islands (paCGIs) in genes related to inflammatory response (NLRP6, cGAS), cellular adhesion (PCDH17, CDH7) and proliferation (WIF1, SFRP1, TERT, and HAND2) in CEs. Moreover, low-dose THC reduced NLRP6 protein expression in CE by hypermethylating the NLRP6 paCGI and blocked polyI:C induced NLRP6 upregulation in vitro. In ART suppressed SIV-infected RMs, significant NLRP6 protein upregulation during acute infection was unaffected by long-term ART administration during chronic infection despite successful plasma and tissue viral suppression. In this group, NLRP6 protein upregulation was associated with significantly increased expression of necroptosis-driving proteins; phosphorylated-RIPK3(Ser199), phosphorylated-MLKL(Thr357/Ser358), and HMGB1. Most strikingly, adding ART to THC-treated SIV-infected RMs effectively reduced NLRP6 and necroptosis-driving protein expression to pre-infection levels.

Conclusions

We conclude that DNA hypomethylation-assisted NLRP6 upregulation can lead to its constitutively high expression resulting in the activation of necroptosis signaling via the RIPK3/p-MLKL pathway that can eventually drive intestinal epithelial loss/death. From a clinical standpoint, low-dose phytocannabinoids in combination with ART could safely and successfully reduce/reverse persistent GI inflammatory responses via modulating DNA methylation.

Introduction

The gastrointestinal (GI) tract, the predominant site of human/simian immunodeficiency virus (HIV/SIV) replication, persistence, and dissemination, plays the triple role of nutrient, water, and anti-retroviral drug absorption while simultaneously protecting the host from luminal pathogenic bacteria and their metabolites. Chronic inflammation of the colon, home to trillions of commensal bacteria, can perturb the homeostatic balance between the host and gut microbiota, causing dysbiosis and epithelial barrier dysfunction that can lead to microbial translocation, which can perpetuate systemic inflammation [1, 2]. Despite viral suppression by combination anti-retroviral therapy (ART), HIV/SIV-associated enteropathy that persists in people living with HIV (PLWH) [3,4,5] may result in systemic inflammation that can contribute to numerous other non-AIDS-associated comorbidities, thereby decreasing their overall quality of life [1, 3, 6, 7]. Persistent GI inflammation has also been shown to occur in people living with inflammatory bowel disease (IBD), despite the absence of overt GI symptoms [8]. More importantly, inflammation-driven chronic intestinal barrier impairment has been linked to extra-intestinal comorbidities, such as nonalcoholic fatty liver disease and type- 2 diabetes, and is associated with neurocognitive and inflammatory diseases [1] including Parkinson’s disease, Alzheimer’s disease, and multiple sclerosis [9]. We previously showed that an impaired intestinal barrier caused by SIV-induced intestinal inflammation can alter signaling along the microbiota-gut-brain-axis, where dysbiotic microbes and microbial-derived by-products can increase intestinal inflammation, increase type-I interferon responses, and induce endoplasmic reticulum and oxidative stress in the neurons of the basal ganglia, and could lead to neuroinflammation and potentially cognitive decline in PLWH [10].

While the molecular mechanisms underlying GI epithelial dysfunction in PLWH are ill-defined, emerging evidence in other GI inflammatory diseases, such as IBD and irritable bowel syndrome (IBS), points to epigenetic origins. In this context, aberrant DNA methylation and non-coding RNAs (microRNAs and long non-coding RNAs) have been shown to contribute to epithelial dysfunction in IBD and IBS [11,12,13,14,15,16,17,18,19,20,21,22,23]. Moreover, therapeutic drugs to treat intestinal epithelial barrier impairment and restore barrier function are currently unavailable, and therefore, this topic is of significant interest for future drug development [8, 9]. Due to the heritable nature of epigenetic changes, the role of DNA methylation in chronic intestinal inflammation needs to be carefully examined, and promising immune modulation strategies should be explored to reduce inflammation and disease progression in not only PLWH but also those who suffer from IBD, as only 40–60% of the population respond to current therapies [24].

Here, we used reduced representation bisulfite sequencing (RRBS) to better understand how epigenetic regulation, through DNA methylation of colonic epithelial genes, can impact pro-inflammatory genes and lead to chronic intestinal inflammation and epithelial dysfunction in SIV-infected rhesus macaques (RMs). While impossible in PLWH, intestinal resections (~ 5 cm) are routinely collected from SIV-infected RMs without any serious adverse effects, providing a unique avenue to identify epigenetically altered protein-coding genes involved in intestinal barrier disruption [25,26,27,28,29,30,31]. Using this approach, we found marked alterations in DNA methylation, specifically hypomethylation occurring in promoter-associated CpG islands (paCGI), in the colonic epithelium (CE) of SIV-infected RMs. These genes were linked to epithelial cell proliferation and adhesion, apoptosis, inflammatory response, dsDNA damage response, and oxidative stress. More importantly, we showed that long-term, low-dose delta-9-tetrahydrocannabinol (THC) administration to SIV-infected RMs successfully modulated methylation in paCGIs, notably hypermethylation in the CpG island of the NOD-like receptor family pyrin domain containing 6 (NLRP6), which markedly decreased protein expression of NLRP6, a sensor component of the NLRP6 inflammasome known to maintain intestinal epithelial barrier function and protect against microbial invasion, relative to control RMs. Persistent NLRP6 activation was associated with significantly high mRNA and protein expression of necroptosis-promoting RIPK1-RIPK3-MLKL pathway. In in vitro cultured human small intestinal epithelial cells, both THC and cannabidiol (CBD) successfully blocked NLRP6 protein upregulation in response to polyI:C and lipoteichoic acid. Lastly, while long-term ART administration alone did not fully reduce NLRP6 protein expression in the intestines of SIV-infected RMs, supplementing long-term ART with low-dose THC successfully reduced NLRP6 protein compared to the increase seen one month after infection.

Our findings provide novel translational and mechanism-based insights into the epigenetic regulation of intestinal epithelial gene expression in HIV/SIV infection and phytocannabinoid-induced alteration of DNA methylation as an important understudied molecular mechanism attributable to its anti-inflammatory and cellular protective properties. Benefits could also expand to other diseases associated with intestinal inflammation, such as IBD, where interventions to address the cause and restoration of barrier integrity have not been successful. Additionally, our data suggests that chronic low-dose phytocannabinoid administration could be used as a relatively safe [32] therapeutic intervention for persistent intestinal inflammation, and its use alone or as an adjunct to ART can be beneficial for PLWH [32] with no access to ART or for those who fail to fully suppress HIV under ART.

Materials and methods

Animal care, ethics, and experimental procedures

All experiments using rhesus macaques were approved by the Tulane Institutional Animal Care and Use Committee (Protocols 3574, 3581, and 3781). The Tulane National Primate Research Center (TNPRC) is an association for Assessment and Accreditation of Laboratory Animal Care International-accredited facility (AAALAC #000594). The NIH Office of Laboratory Animal Welfare assurance number for the TNPRC is A3071 - 01. All clinical procedures, including administration of anesthesia and analgesics, were carried out under the direction of a laboratory animal veterinarian. Animals were pre-anesthetized with ketamine hydrochloride, acepromazine, and glycopyrrolate, intubated and maintained on a mixture of isoflurane and oxygen. All possible measures were taken to minimize the discomfort of all the animals used in this study. Tulane University complies with NIH policy on animal welfare, the Animal Welfare Act, and all other applicable federal, state and local laws.

Animal model and experimental design

Fifty-eight age and weight-matched male Indian RMs were randomly distributed into five groups. As non-human primates (NHPs) are “an acutely scarce resource”, the use of only male NHPs is specifically acceptable under NOT-OD-15–102 (Consideration of Sex as a Biological Variable in NIH-funded Research). Group 1 [uninfected controls (n = 16)] served as uninfected controls. Groups 2–5 (n = 42) were infected intravenously with 100 times the 50% tissue culture infective dose (100 TCID₅₀) of SIVmac251. Groups 2 [VEH/SIV] (n= 15) and 4 [VEH/SIV/ART] (n= 8) received twice daily injections of vehicle (VEH) (1:1:18 of emulphor:ethanol:saline), intramuscularly. Groups 3 [THC/SIV] (n= 11) and 5 [THC/SIV/ART] (n= 8) received twice daily injections of THC intramuscularly four (THC/SIV) or two weeks (THC/SIV/ART) before SIV infection at 0.18 mg/kg, as used in previous studies [10]. This dose of THC was found to eliminate responding in a complex operant behavioral task in almost all animals [33]. The dose was subsequently increased for each subject to 0.32 mg/kg on the day of SIV infection, over a period of approximately two-four weeks when responding was no longer affected by 0.18 mg/kg daily (i.e., tolerance developed) and maintained for the duration of the study. The optimization of the THC administration in rhesus macaques accounts for the development of tolerance during the initial period of administration. Because in our previously published studies [31, 34] this dose of THC showed protection, the same dose was used in this study. The 0.32 mg/kg dose was also shown to be effective in SIV-infected RMs of Chinese origin [35]. For animals in groups 4 and 5 (n = 16), ART was given daily by subcutaneous injection and included PMPA (20 mg/kg) (Gilead), Emtricitabine (30 mg/kg) (Gilead) and Dolutegravir (3 mg/kg) (ViiV Healthcare) and was initiated two weeks post-infection. As mentioned previously [36], four macaques in group 4 and four macaques in group 5 received two injections of anti-α4β7 integrin (VEHSIVART3, VEHSIVART8, THCSIVART6, THCSIVART8) or control IgG (VEHSIVART6, VEHSIVART7, THCSIVART5, THCSIVART7) (50 mg/kg of anti-α4β7 or control IgG) beginning 4 months post infection (MPI) at three-week intervals as part of another study before the jejunum resections were collected at 5 MPI. Note that the anti-α4β7 antibody functions by blocking α4β7 positive T cells from trafficking to the intestine and did not influence viral rebound after 6–8 treatments at 3-week intervals. These animals were also used in our previously published study [37] and the data showed that both anti-α4β7 and control IgG did not impact the MMP25-AS1 mRNA (C_T values) and MMP25 protein expression (fluorescence intensity) in the jejunum. Similarly, we did not see any impact of anti-α4β7 and control IgG on NLRP6 or necroptosis pathway-related protein expression. Nevertheless, we have and continue to report this information in all manuscripts that utilize these animals to maintain transparency about the experimental manipulations.

Colon tissue (~5 cm) was collected for epithelial cell isolation at necropsy from all animals except animals from groups 4 and 5. For these animals, jejunum resections (5~cm) were collected at pre-infection, 1 MPI and 5 MPI. For histopathological and immunohistochemical evaluation, colon and jejunum tissues were fixed in Z-fix, embedded in paraffin, sectioned at 5 µm, processed, and Hematoxylin and eosin-stained for detailed evaluation by a board-certified veterinary pathologist. The pathologist was blinded to the animal group assignments. The histopathology findings are provided in Table 1.

Table 1 Animal IDs, SIV infection (SIVmac251) duration time, cannabinoids and cART treatment, viral load for plasma, colon, and jejunum, and histopathology for colon and jejunum tissue

SIV levels in plasma, colon, and jejunum were quantified using the TaqMan One-Step Real-time RT-qPCR assay that targeted the LTR gene [38]. SIV inoculum, infection duration, plasma/colon/jejunum viral loads, and colon/jejunum histopathology can be found in Table 1 and Figure S1 A & B.

Study rationale and approach

In previous studies, we [10, 31, 36, 38] and our collaborators [33, 39, 40] both separately and together showed that blocking/targeting inflammation with phytocannabinoids (THC) alone in the absence of ART successfully reduced gastrointestinal and neuroinflammation and prolonged survival. Since numerous proinflammatory genes have CpG islands in their promoter regions, in the current study, we wanted to determine if cannabinoids exerted their anti-inflammatory effects through epigenetic modulation. Accordingly, we first performed DNA methylation profiling using reduced representation bisulfite sequencing in a subset of ART-naïve SIV-infected and uninfected control RMs [uninfected controls (CONT1 - 5), VEH/SIV (VEHSIV1 - 7), and THC/SIV (THCSIV1 - 6)] (Table 1) (Fig. 1A). These sample sizes are routinely used to offset the high costs associated with NHP studies in general.

Fig. 1

Hypomethylation changes in promoter associated CpG islands (paCGIs) associated with upregulation of their respective gene and methylation altering machinery gene expression. Study design to investigate the effect of delta- 9-tetrahydrocannabinol (THC) and vehicle (VEH) treatments in ART-naïve (A) and ART-experienced (B) SIV-infected RMs. Distribution of differentially methylated sites (DMSs) (p-value ≤ 0.05, absolute Δβ-value > 0.1) in individual chromosomes of the RM genome (C). Number of genes that showed hypo or hypermethylation in their paCGIs compared to their respective exons and introns in VEH/SIV (red) and THC/SIV (blue) relative to control or VEH/SIV compared to THC/SIV RMs (green) (D). Δβ-value of DMSs within the paCGIs between VEH/SIV and THC/SIV compared to controls, and THC/SIV relative to control vs VEH/SIV compared to THC/SIV RMs (E). Venn diagram showing the relationship between Δβ-values of DMSs in paCGIs and gene expression in VEH/SIV (F) and THC/SIV (G) relative to control or VEH/SIV compared to THC/SIV RMs (H). Normalized signal intensity and fold change of TET2 (I), DNMT3A (J) and DNMT3B (K) mRNA in colonic epithelium of VEH/SIV and THC/SIV compared to control RMs. Differences in methylation changes between groups were analyzed using Kruskal-Wallis test (GraphPad Prism). A p-value of ≤ 0.05 was considered significant. Data represented as mean ± SD. Controls refer to uninfected controls

Next, to determine the relationship between DNA methylation changes and gene expression, we mined microarray gene expression data from a recently published study [36] that utilized another cohort of animals that also overlapped with the ones used in the DNA methylation study [uninfected controls (CONT5-8), VEH/SIV (VEHSIV1,3,8–10), and THC/SIV (THCSIV2,7–10)] (Table 1).

For validation of DNA methylation data, we recruited additional animals to perform immunofluorescence (IF) studies for localization and quantification of NLRP6 and necroptosis-associated protein expression [uninfected controls (CONT9-16), VEH/SIV (VEHSIV1-3,5–6,8,10–13), and THC/SIV (THCSIV2,4–6,8–11)] (Table 1). Adding more animals for IF studies increased rigor and helped achieve statistical significance.

Finally, since the DNA methylation (RRBS) studies were performed in ART-naïve SIV-infected RMs, we were intrigued to find out if protein expression of the NLRP6 inflammasome sensor and necroptosis-associated genes remained dysregulated despite viral suppression by ART. This component of the study is critical given that the majority of the PLWH have access to ART and continue to maintain heightened states of inflammation and, as a result, suffer from inflammation-driven non-AIDS associated comorbidities such as cardiovascular disease, metabolic disease, liver, renal disease, etc. To address this important question, we used archived intact jejunum surgical resection segments (~5 cm long) harvested at pre-SIV infection, 1 month, and again at 5 months post-SIV infection from VEH/SIV/ART (n= 8) (VEHSIVART1-8), and THC/SIV/ART (THCSIVART1-8) (Table 1 and Fig. 1B) RMs for immunofluorescence studies. This analysis detected significantly dysregulated expression of NLRP6, and several necroptosis-associated proteins in the intestines of SIV-infected RMs despite long-term viral suppression by ART, thereby providing new information about the molecular mechanisms driving intestinal epithelial dysfunction in the ART setting.

Colonic epithelial cell isolation and DNA/RNA extraction

Colon epithelial cells were isolated [30] for Arraystar microarray [36] and RRBS. The purified epithelial components were then collected in RNAlater (Thermo Fisher Scientific) for DNA extraction (DNeasy Blood and Tissue Kit; Qiagen Inc, CA), or lyzed in Qiazol (Qiagen Inc, CA) for total RNA extraction.

Reduced representation bisulfite sequencing (RRBS) library construction

Methyl-MiniSeq Library preparation was performed by Zymo Research. Libraries were prepared from 200-500 ng of genomic DNA digested with 60 units of Taqαl and 30 units of MspI (NEB) sequentially and then extracted with DNA Clean & Concentrator^TM− 5 (Zymo Research). Fragments were ligated to pre-annealed adapters containing 5’-methyl-cytosine according to Illumina’s specified guidelines. Adapter-ligated fragments of 150 - 250 bp and 250 - 300 bp were recovered from a 2/5% NuSieve 1:1 agarose gel (Zymoclean Gel DNA Recovery Kit, Zymo Research). The fragments were then bisulfite treated using EZ DNA Methylation-Lightning Kit (Zymo Research). Preparative-scale PCR was performed, and the resulting products purified for sequencing on an Illumina HiSeq.

Sequence reads from bisulfite-treated EpiQuest libraries were identified using standard Illumina base-calling software and then analyzed using Zymo Research proprietary analysis pipeline, which is written in Python along with Bismark (www.bioinfomatics.babraham.ac.uk/projects/bismark/) to perform the alignment. Index files were constructed using the bismark_genome_preparation) command and the entire reference genome. The non-directional parameter was applied while running Bismark. All other parameters were set to default. Filled-in nucleotides were trimmed off while doing methylation calling. The methylation level of each sampled cytosine (C) was estimated as the number of reads reporting a C, divided by the total number of reads reporting a C or thymine. Fisher’s exact test or t-test was performed for each CpG site which has at least five reads coverage, and promoter, gene body, and CpG island annotations were added for each CpG included in the comparison.

Global mRNA profiling

Sample preparation, microarray analysis, and statistics were performed by Arraystar, as previously described [36].

GO enrichment analysis

To determine the biological functions of differentially methylated genes, Gene Ontology (GO) enrichment analysis was carried out as previously described [36] using Macaca mulatta as the selected organism.

Quantitative image analysis of colon and jejunum sections

Colon and jejunum sections from animals in Table 1 were stained with antibodies specific for NLRP6 (Millipore Sigma: ABF29; colon 1:100 dilution), p-RIPK3(Ser199) (MyBiosource: MBS1569089; 1:200 dilution), PPM1B (Proteintech: 67647 - 1-Ig; 1:500 dilution), p-MLKL(Thr357) (Novus Biologicals: MAB91871, 1:200 dilution), p-MLKL(Ser358) (GeneTex; GTX00973, 1:100 dilution), and HMGB1 (D3E5) (Cell Signaling Technology: 6893; 1:50 dilution). At least eight areas per tissue section for each RM were scanned using a Zeiss LSM800 confocal microscope (Carl ZEISS Microscopy, LLC) at 20X magnification and imported as digital images into HALO software (Indica Labs) for image quantitative analysis. Since cells in the lamina propria also stained positive for all protein markers, regions of interest (ROIs) were manually drawn around the colon or jejunum epithelium using the HALO pen tool. The Indica Labs’ Area quantification module (FL v4.2.3) was then utilized to determine the average intensity of NLRP6 and the different necroptosis-associated protein expression in each epithelial cell in the ROIs. The output values (average positive area fluorescence) were used to calculate the total fluorescence within the ROIs for colonic and jejunal sections.

Data availability

RRBS data (accession no: GSE289822: https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE289822) has been submitted to Gene Expression Omnibus (GEO). mRNA profiling data was previously submitted to GEO (accession no: GSE223482; https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE223482) [36].

Data analysis

Distribution of differentially methylated sites in the paCGI region of protein-coding genes and the average methylation change that occurred within NLRP6 paCGI, mRNA gene expression changes, and NLRP6 and necroptosis-associated protein image quantitation in the colonic and jejunum epithelium and lamina propria mononuclear cells (LPMNCs) were graphed and analyzed using Prism v9 software (GraphPad).

After verifying data assumptions (normal distribution) using Anderson-Darling, D’Agostino & Pearson, Shapiro-Wilk, and Kolmogorov-Smirnov tests, p-values were calculated using either Kruskal-Wallis (differential methylation change in paCGIs and NLRP6 fluorescence in colonic LPL) or ordinary one-way ANOVA [Area fluorescence of NLRP6, p-RIPK3(Ser199), PPM1B, p-MLKL(Thr357), p-MLKL(Ser358) and HMGB1 in colon and jejunum epithelium]. Further, an unpaired t-test was used for analyzing methylation ratio of DMSs within NLRP6 and MB21D1 paCGI in VEH/SIV relative to control and THC/SIV RMs. Furthermore, the Mann-Whitney U test was used to analyze methylation ratio of DMSs within NLRP6 paCGI in THC/SIV relative to control RMs. Finally, mixed-effects analysis was used to analyze NLRP6 area fluorescence in jejunum epithelial cells. Heatmaps were generated using TBtools [41].

Results

Plasma, colon, and jejunum viral loads and histopathology

All ART-naïve RMs in groups 2 and 3 had substantial plasma (0.01 x 10⁶ to 2.6 x 10⁸) and colon (1 x 10⁶ to 9.36 x 10⁹) viral loads at 6MPI. Plasma and colon viral loads between the VEH/SIV and THC/SIV RMs did not show statistically significant differences (Figure S1 A, B). ART-treated RMs in groups 4 and 5 had undetectable plasma and jejunum viral loads at 5MPI (Table 1). Histopathological analysis revealed moderate colitis and cryptitis and lymphoid hyperplasia in four group 2 and two group 3 RMs (Table 1). SIV syncytial cells were detected in one group 3 macaque. No opportunistic infections were detected in any of the animals.

Chronic HIV/SIV infection is characterized by global DNA hypomethylation concentrated mainly in promoter-associated CpG islands in colonic epithelium

Based on findings from DNA methylation profiling of CE using RRBS, relative to controls, both VEH/SIV and THC/SIV RMs, and VEH/SIV compared to THC/SIV RMs showed more changes in CpG methylation ratios [Δβ-value] (a decrease indicates hypomethylation change, while an increase indicates hypermethylation change); p-value < 0.05, absolute Δβ-value > 0.1) distributed throughout all chromosomes, with the least amount of differentially methylated CpG sites (DMSs) occurring in chromosome Y (Fig. 1C). All data presented below is described in the flow chart in Figure S1 C. As shown in Fig. 1C, compared to controls, THC/SIV RMs had more DMSs than VEH/SIV RMs. In addition, THC/SIV RMs showed more hypomethylation (values below 0) changes in all comparisons than hypermethylation (values above 0) (Fig. 1C). Only DMSs within annotated genes (intergenic and unannotated regions excluded) were analyzed. Compared to controls, VEH/SIV RMs had a total of 13,831 [out of 94,279 (14.67%)] DMSs within annotated genes (Figure S2 A). A similar number of DMSs were detected in THC/SIV compared to control RMs; 13.59% of DMSs were within annotated genes (16,730 out of 123,135 DMSs; Figure S2B). Lastly, compared to THC/SIV, VEH/SIV RMs had a total of 6,796 [out of 64,069 (10.61%)] DMSs within annotated genes (Figure S2 C).

We focused on methylation changes that occurred within the CpG-rich genomic regions called CpG islands (CGIs) that also included the promoter, exon, and intron intragenic regions. CGIs that spanned a promoter region (continuing into the exon and intron regions) were classified as paCGIs. Nearly 70% of gene promoters reside within CGIs and are normally unmethylated [42,43,44]. Interestingly, paCGIs are devoid of common promoter elements (TATA boxes and core promoter elements), but contain binding sites for transcription factors, which help their respective genes to maintain a transcriptionally permissive state. Out of all the DMSs within annotated genes, VEH/SIV RMs had 43.79% located within CGIs (6,056 out of 13,831), relative to control RMs. These DMSs were identified in 2,688 genes, of which 2,504 genes had 5,084 (83.95%) DMSs within paCGIs (Figure S2D and 1D). Relative to controls, THC/SIV RMs showed 7,526 out of 16,730 (44.99%) DMSs in CGIs within annotated genes. There were 2,622 unique genes that had 80.85% (6,085 out of 7,526) of DMSs in paCGIs within annotated genes (Figure S2E and 1D). Finally, VEH/SIV RMs had 1,686 (24.81%) DMSs within 540 CGIs of annotated genes and contained 1,021 (60.56%) DMSs within the paCGIs of 343 genes, relative to THC/SIV RMs (Figure S2 F and 1D).

Intriguingly, untreated SIV infection was associated with more hypomethylation changes in the paCGI [Figure S2 A, S2B (Δβ-values to the left of 0 on X-axis), 1D, and 1E (Δβ-values below 0)]. The largest Δβ-value change detected was a decrease of 20% (Figure S2 A and S2B), and both VEH/SIV and THC/SIV RMs had more promoters that were hypomethylated than exons and introns in CGIs (Fig. 1D and E). Relative to controls, THC/SIV RMs also showed increased hypermethylation in the promoters, exons, and introns compared to VEH/SIV RMs (Fig. 1D). Interestingly, all comparisons showed a large range of hypomethylation changes that occurred in the paCGI (10–90% Δβ-value decrease), but hypermethylation changes were restricted to less than 50% (10–45% Δβ-value increase, Fig. 1E). There was also a significant difference in the total number and hypomethylation changes detected in the paCGIs of VEH/SIV and THC/SIV RMs compared to controls and in VEH/SIV relative to THC/SIV RMs (Fig. 1E). The same was true for the total number and hypermethylation changes that occurred in the paCGIs in VEH/SIV and THC/SIV compared to controls, and in VEH/SIV vs. THC/SIV RMs, relative to THC/SIV compared to controls (Fig. 1E).

Figure S3 A-C shows clustering heatmaps of the top 100 differentially methylated CpG sites, including those located in intergenic regions, demonstrating major differences in methylation among the three different groups. The top 100 DMSs are mostly hypomethylated in VEH/SIV and THC/SIV relative to control RMs (Figures S3A and S3B). When compared to THC/SIV, the top 100 DMSs in VEH/SIV RMs showed a range of methylation changes (Figure S3 C), with hypomethylation predominating. Pearson’s coefficients for all CpG sites between VEH/SIV vs. control, THC/SIV vs. control, and VEH/SIV vs. THC/SIV RMs were 0.9400, 0.9358, and 0.9359, respectively (Figure S3D-F). These values look very strong, suggesting that each point where the methylation value is different indicates a major treatment effect.

Hypomethylation of paCGI sites resulted in upregulation of their corresponding gene expression, including the machinery responsible for demethylation and de novo methylation

Next, we assessed the effect of the cumulative Δβ-value (average of all DMSs Δβ-values per gene) of DMSs in individual paCGIs on gene expression. We compared the number of genes that had a cumulative Δβ-value (hypo- or hypermethylation) in the paCGIs to the number of genes that were differentially expressed in our recently published manuscript [36] that utilized a human microarray platform designed to profile mRNAs and lncRNAs in the same RMs using CE total RNA. Methylation changes in the paCGIs of genes showed an inverse association with gene regulation (i.e., hypomethylated paCGIs and respective gene upregulation or hypermethylation paCGIs and respective gene downregulation) in 11.5% [751 out of 6533 differentially expressed genes (DEGs)] and 11.4% (480 out of 4229 DEGs) of genes in VEH/SIV and THC/SIV RMs, respectively, compared to controls (Fig. 1F and G). Hypomethylation was better associated with gene expression changes (increased expression) than hypermethylation, as 99% (743/751 genes were hypomethylated and upregulated, compared to 8/751 genes that were hypermethylated and downregulated) (Fig. 1F) and 97.5% (468/480 genes were hypomethylated and upregulated, compared to 12/480 genes that were hypermethylated and downregulated) (Fig. 1G) of all genes with DMSs in the paCGIs were hypomethylated in VEH/SIV and THC/SIV RMs, respectively, compared to controls. Surprisingly, methylation changes in the paCGIs had minimal influence on gene expression in VEH/SIV when compared to THC/SIV RMs, as only 4 genes with methylation changes in the paCGIs inversely impacted gene expression (Fig. 1H). We also found that hypermethylation in the paCGIs was associated with downregulation of gene expression, as well as an association between hypomethylation and upregulation of gene expression. Consistent with these findings, mRNA upregulation of the enzymes involved in demethylation (TET- 2; 1.76-fold) (Fig. 1I) and de novo methylation [DNMT3a; 2.4-fold (Fig. 1J) and DNMT3b; 2.06-fold) (Fig. 1K)] was detected in VEH/SIV (n= 5) but not THC/SIV (n= 6) compared to control RMs (n= 6). Although upregulated, TET- 3 mRNA did not show statistical significance (Figure S3G).

Long-term, low-dose THC administration modulated gene expression associated with intercellular signaling, communication, junction organization, and NLRP6 inflammasome assembly

Using Gene Ontology (GO) enrichment analysis, we investigated the effect of the cumulative Δβ-value in the paCGIs of protein-coding genes on the biological processes in CE during HIV/SIV infection. HIV/SIV infection-induced hypomethylation affected the expression of genes linked to epithelial cell proliferation and its regulation, cell growth, cellular response to transforming growth factor-β (TGF-β), regulation of and/or response to oxidative stress, apoptotic signaling pathway, programmed cell death, canonical Wnt signaling pathway, cell communication and signaling, and MAPK cascade (Fig. 2A and B). Relative to controls, phytocannabinoid administration had little impact on the number of genes hypomethylated in the above biological processes, compared to VEH/SIV RMs (Fig. 2A and B). When compared to THC/SIV, VEH/SIV RMs had significantly more hypomethylated genes involved in positive regulation of cell communication (Fig. 2B). These animals also had hypermethylated genes involved in the overall and negative regulation of cell communication, regulation of cell signaling, and MAPK cascade (Fig. 2B).

Fig. 2

Genes with methylation changes throughout CGIs associated with inflammatory response, cellular adhesion, and proliferation. Biological processes identified using Gene Ontology enrichment analysis of hypomethylated genes in VEH/SIV (red) and THC/SIV (blue) compared to controls or in VEH/SIV relative to THC/SIV RMs (dark green) (A-C) or hypermethylated genes in THC/SIV compared to control RMs (light green) (B&D). Number of differentially methylated CpGs in the CGIs of NLRP6 (E), LEP (F), PCDH17 (G), CDH7 (H), SFRP1 (I), TERT (J), and the Δβ-values in promoter associated CGIs of SFRP1, NLRP6, LEP, and CDH7 (K). DMSs with p-value ≤ 0.05, absolute Δβ-value > 0.1. Controls refer to uninfected controls

Not surprisingly, compared to controls, only VEH/SIV RMs showed hypomethylation changes in genes involved in epithelial cell differentiation, positive regulation of cell population proliferation, and regulation of epithelial cell migration, an indirect indicator of host response to epithelial cell loss (Fig. 2C). Notably, genes responsible for the regulation of oxidative stress-induced cell death and autophagy were hypomethylated in THC/SIV relative to control RMs (Fig. 2C). Compared to THC/SIV, VEH/SIV RMs showed hypomethylation of genes involved in cell junction organization and cell-to-cell signaling (Fig. 2C). Most strikingly, hypermethylation of genes responsible for the negative regulation of Wnt protein secretion, positive regulation of MAPK cascade, and, more importantly, NLRP6 inflammasome complex assembly (Fig. 2D) were detected in THC/SIV relative to control RMs (Fig. 2D).

Using supervised analysis, we examined genes that showed differential methylation throughout their respective paCGIs. Relative to controls, VEH/SIV RMs had DMSs (mostly hypomethylation) in genes associated with inflammatory response [C-C motif chemokine ligand 12 (CXCL12), toll-interacting protein (TOLLIP), NLR family pyrin domain containing 6 (NLRP6; Fig. 2E), leptin (LEP; Fig. 2F), Mab- 21 Domain containing 1 (MB21D1) also known as cyclic GMP-AMP synthase (cGAS)], cellular adhesion [claudin 6 and 11, intercellular adhesion molecule 1 (ICAM1), protein kinase C-beta (PRKCB), protocadherin 17 and 19 (PCDH17 and PCDH19; Fig. 2G), adrenocorticotropic receptor beta 1 (ADRB1), cadherin 7 (CDH7; Fig. 2H), genes associated with protection against oxidative stress [cytoglobin (CYGB), glutathione peroxidase 3 (GPX3)], colonic epithelial cell proliferation [Wnt inhibitory factor 1 (WIF1), soluble frizzled protein 1 (SFRP1; Fig. 2I), telomerase reverse transcriptase (TERT; Fig. 2J), heart and neural crest derivatives expressed 2 (HAND2)], and apoptosis [death-associated protein kinase 1 (DAPK1), BCL2-Like- 1 (BCL2L1)]. Table S1 shows the respective number of DMSs for each gene, as well as the average change in methylation due to these DMSs throughout the CGI. The average methylation changes of 1–14 DMSs in the CGI for the genes above were between − 40.7% and 12.3% (columns 4, 6, and 8 of Table S1).

In contrast, relative to control RMs, although THC/SIV RMs showed DMSs in the genes described above, key genes associated with the inflammatory response (Table S1) showed more hypermethylated CpG sites (hyper-MSs), compared to VEH/SIV RMs, specifically NLRP6 (38 hyper-MSs and 6 hypo-MSs; Fig. 2E), and MB21D1 or cGAS (9 hyper-MSs and 1 hypo-MS). The average methylation differences were 12.5% (NLRP6) and 24.2% (MB21D1). Interestingly, while there were more hyper-MSs in LEP (Fig. 2F), in THC/SIV than VEH/SIV relative to control RMs, both had an average positive methylation change of 2.6% (VEH/SIV) and 15.6% (THC/SIV). As with LEP, while PCDH17 had more hyper-MSs (52; Fig. 2G, Table S1), there was a positive methylation change in both VEH/SIV and THC/SIV compared to control RMs (3.7% and 24.1%, respectively). Genes associated with cellular adhesion (Table S1) showed a similar pattern of methylation difference in THC/SIV and VEH/SIV compared to control RMs, except for CDH7 (Fig. 2H), which had 20 hyper-MSs, one hypo-MS, and a methylation change of 24.9% in THC/SIV compared to control RMs. Like VEH/SIV RMs, genes associated with oxidative stress and apoptosis (Table S1) also showed similar methylation changes in THC/SIV compared to controls. Finally, SFRP1 (18 hyper-MSs and 3 hypo-MSs; Fig. 2I), TERT (10 hyper-MSs and one hypo-MS; Fig. 2J), and HAND2 (one hyper-MS), associated with colonocyte proliferation, were hypermethylated in THC/SIV RMs compared to controls, as opposed to VEH/SIV RMs.

Relative to THC/SIV, hypomethylation occurred in all the genes discussed above, with an average methylation difference of between −28 and 11% in VEH/SIV RMs. Since our focus was on methylation changes that occurred in paCGIs, we investigated the average methylation changes that occurred in genes described above that had at least 10% of the CpG sites differentially methylated, which included NLRP6, LEP, CDH7, and SFRP1 (Fig. 2E, F, H, and I, Table S1). Unlike THC/SIV RMs, relative to control RMs, for the genes listed above, VEH/SIV RMs displayed a negative (hypomethylation) methylation change in TERT and SFRP1 (Fig. 2I, J and K), while NLRP6 and LEP had a positive methylation change (Fig. 2K). Interestingly, while no DMSs were detected in the paCGIs of CDH7 in VEH/SIV compared to control RMs, several DMSs were detected in VEH/SIV relative to THC/SIV RMs.

Long-term, low-dose THC-induced hypermethylation of CpGs in the paCGI of NLRP6 resulted in decreased NLRP6 protein expression in the colon of SIV-infected RMs

The GO identification of a cluster of hypermethylated genes directly involved in NLRP6 inflammasome assembly (Fig. 2D) prompted us to focus further on methylation changes in NLRP6, the gene responsible for protecting the intestinal epithelial barrier from harmful gut microbes and maintaining gut homeostasis, through inflammasome activation. However, in IBD, although the host responds to microbial invasion initially by activating NLRP6, the persistence of the inflammatory trigger drives NLRP6 hyperactivation, inflammasome activation, and consequently damaging colonic inflammation and barrier disruption [45]. Within the NLRP6 CGI, VEH/SIV RMs showed a total of 14 DMSs (Fig. 3A and B), relative to controls. These included eight hypomethylated (boxed region in Fig. 3B) and six hypermethylated sites. Within the promoter region, two sites each were hypomethylated (green arrows in Fig. 3B) and hypermethylated (red arrows in Fig. 3B). Relative to controls, THC/SIV RMs showed a significantly higher number of DMSs in NLRP6 CGI than seen in VEH/SIV RMs, with a total of 44 DMSs (Fig. 3A and C). Out of these, 38 sites were hypermethylated (boxed region in Fig. 3C), and 6 were hypomethylated. Strikingly, except for one (hypomethylated) (green arrow in Fig. 3C), 26 sites were hypermethylated (red curly bracket in Fig. 3C) in the paCGI region. Lastly, when compared to THC/SIV, VEH/SIV RMs had 13 DMSs in the CGI of NLRP6 (Fig. 3A and D), out of which 12 were significantly hypomethylated (boxed region in Fig. 3D) and only one site located in the intron was hypermethylated (red arrow in Fig. 3D). The average Δβ-value in the paCGI of NLRP6 was not significantly different in VEH/SIV relative to controls (Figure S3H) or THC/SIV RMs (Figure S3I). Inversely, there was a significant increase in the Δβ-value of CpG sites of NLRP6 paCGI in THC/SIV compared to control RMs (Fig. 3E).

Fig. 3

Long-term low-dose THC administration significantly increased methylation in the NLRP6 paCGI. UCSC Genome track for NLRP6 showing the location of the paCGI (black box), and DMSs in VEH/SIV (red) and THC/SIV (blue) relative to control, and VEH/SIV compared to THC/SIV RMs (green) (A). Heat maps showing the DMSs in NLRP6 CGI in VEH/SIV (B), and THC/SIV (C) compared to control or in VEH/SIV relative to THC/SIV RMs (D). Cumulative β-values of NLRP6 paCGI in THC/SIV (E) relative to control. Immunofluorescence localization of NLRP6 protein expression in the colon of control (F), ART-naïve VEH/SIV (G), and THC/SIV RMs (H), and jejunum of ART-experienced RMs before SIV infection (K&N), at 1 (L&O)- and 5 (M&P)-months post infection (MPI) administered Vehicle or THC. Quantification of NLRP6 protein expression in the colon and jejunum epithelial (I&J) and lamina propria mononuclear cell (Q&R) compartments. The cumulative β-values were analyzed using Mann-Whitney test (E) after testing for data assumptions (normal distribution). Immunofluorescence data were analyzed using one-way ANOVA followed by Tukey’s multiple comparison post- hoc test. A p-value of ≤ 0.05 was considered significant. Controls refer to uninfected controls

Since methylation changes alter gene expression, we next investigated NLRP6 protein expression levels in the colon of all three groups. Since microarray data did not detect significant changes in NRLP6 mRNA expression, we focused on NLRP6 protein expression because not all genes show similar changes at the mRNA and protein levels. NLRP6 protein expression was detected in both the nucleus and cytoplasm, with a stronger signal in the nucleus of CE and LPMNCs. The signal intensity was quantified in the epithelial region and LPMNCs separately (Figure S3 J & K) by using the freehand tool in HALO software. We found an inverse relationship between hypermethylation changes in the paCGI of NLPR6 and protein expression, although NLRP6 staining intensity was not significantly different in VEH/SIV RMs (n= 6; Fig. 3G and I) or THC/SIV RMs (n= 6; Fig. 3H and I) compared to controls (n= 5; Fig. 3F and I). Nevertheless, NLRP6 staining intensity had a decreasing trend exclusively in the CE of THC/SIV RMs (Fig. 3H and I) relative to controls and VEH/SIV RMs. Similar to the CE, NLRP6 protein expression was reduced in the LPMNCs (Figure 3J).

Acute HIV/SIV infection significantly increased NLRP6 protein expression, while low-dose THC in combination with ART successfully decreased its expression in the jejunum of SIV-infected RMs

Next, we looked at the effect of acute SIV infection [1 month post infection (MPI)] on NLRP6 protein expression and if cART alone or in combination with THC could decrease NLRP6 protein expression. Here, we focused on the jejunum, as it plays a critical role in both nutrient and cART drug absorption, and its dysfunction can negatively impact both functions. Moreover, high NLRP6 protein expression has been confirmed in the jejunum of mice [46] and humans [47, 48]. Longitudinally, acute HIV/SIV infection (1 MPI; n= 8/group; Fig. 3L, O and Q) resulted in a significant increase in NLRP6 protein expression compared to pre-infection (Fig. 3K, N, and Q). At 5MPI, NLRP6 protein expression in cART-suppressed (VEH/SIV/cART; n= 8) RMs did not differ from their 1 MPI timepoint but significantly elevated from the pre-infection timepoint (Fig. 3M, L, K, and Q). Strikingly, THC/SIV/cART RMs (n= 8) showed a significant decrease in NLRP6 protein expression from their respective 1 MPI timepoints (Fig. 3P, O, and Q) but showed no significant decrease from VEH/SIV/cART RMs at 5 MPI or the pre-infection timepoint (Fig. 3M, N, and Q). THC-induced reductions in NLRP6 protein expression in the jejunum LPMNCs showed a similar trend (Fig. 3R) to that observed in the epithelium (Fig. 3Q).

Phytocannabinoids blocked polyI:C and lipoteichoic acid (LTA)-induced NLRP6 protein upregulation in vitro and significantly increased mRNA expression of the NLRP6 deubiquitinating enzyme CYLD in the CE in vivo

To determine if phytocannabinoids directly blocked NLRP6 protein expression, we separately added 3 µM THC and CBD to human small intestinal epithelial cultures after transfection with 2 µg/mL of polyI:C followed by treatment with LTA (10µg/mL) 4 h later both of which have been demonstrated as ligands capable of activating NLRP6 [48]. It is clear from Fig. 4B, C, and I that polyI:C alone or in combination with LTA significantly increased NLRP6 protein expression in the cytoplasm (white arrows in Fig. 4B and C) compared to cells treated with DMSO (Fig. 4A and I). Interestingly, pretreatment for 1 h with THC (Fig. 4D and I) or CBD (Fig. 4G and I) or both (Fig. 4H and I) successfully blocked polyI:C and LTA-induced NLRP6 protein upregulation. Treatment of cells with an antagonist of the cannabinoid receptor- 1 (AM251) (Fig. 4E and I) or cannabinoid receptor- 2 (AM630) (Fig. 4F and I) did not alter THC’s ability to counter polyI:C and LTA-induced NLRP6 protein upregulation. Therefore, future studies are needed to determine the role of other receptors such as GPR55, PPARs and TRPV ion channels in cannabinoid blockade of NLRP6 protein induction.

Next, we examined if the mRNA expression levels of the NLRP6 inflammasome components and proinflammatory cytokines changed consequent to reduction of NLRP6 protein expression in response to hypermethylation of its paCGI. Intriguingly, mining our recently published CE microarray data from the same RMs [36] for genes that showed differential expression by at least 1.5-fold change and an adjusted p≤ 0.05 confirmed statistically significant upregulation of CYLD, a deubiquitinase shown to remove K63-linked ubiquitin residues on NLRP6 [45] and attenuate its activity. CYLD mRNA was significantly upregulated in CE of THC/SIV (~ 2.7-fold) but not in VEH/SIV RMs relative to controls (Fig. 4J). Similarly, DHX15, an RNA helicase and double-stranded viral RNA sensor shown to interact with NLRP6 and trigger NLRP6 inflammasome assembly and activation [49], was significantly upregulated in CE of VEH/SIV but not in THC/SIV RMs relative to controls (Fig. 4K). In addition, while mRNA expression of caspase- 1 (CASP1, Fig. 4L) and interleukin- 18 (IL- 18, Fig. 4M) increased significantly, the opposite trend (downregulated) was detected with interleukin- 1β (IL- 1β, Fig. 4N) in CE of SIV-infected RMs irrespective of VEH or THC treatment relative to controls. Finally, mRNA expression of the membrane pore-forming protein, Gasdermin D (GSDMD), the downstream executor of pyroptosis, was significantly reduced in CE of both VEH/SIV and THC/SIV relative to control RMs (Fig. 4O).

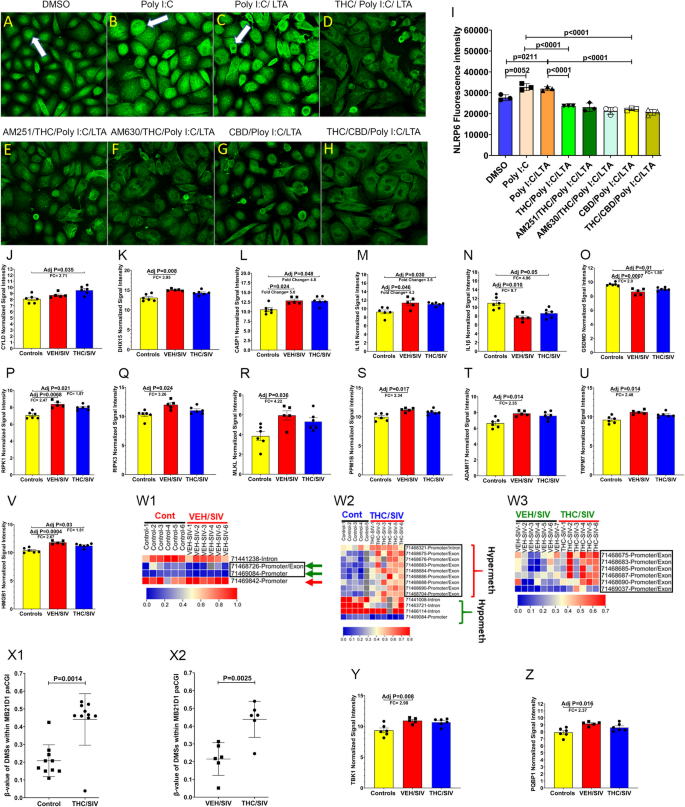

Fig. 4

Cannabinoids successfully blocked polyI:C and LTA-induced NLRP6 upregulation in vitro and reduced necroptosis-driven gene signature in CE of SIV-infected RMs. Representative immunofluorescence images showing the expression of NLRP6 (green) protein in human small intestinal epithelial (HSIE) cells at 18 h following treatment with DMSO (A) or post transfection with 2 µg/mL of polyI:C alone (B) or also treated with lipoteichoic acid (LTA) (10 µg/mL) 4 h later (C). PolyI:C and LTA treated HSIE cells were preincubated for 1 h with THC (D), AM251 followed by THC (E), AM630 followed by THC (F), CBD (G) or THC and CBD (H), fixed after 18 h, stained and NLRP6 (green) protein expression quantitated (I). Experiments were performed in triplicate wells using 3 µM of THC and CBD, 10 µM of AM251/AM630, and repeated thrice. Microarray normalized signal intensity of CYLD (J), DHX15 (K), CASP1 (L), IL- 18 (M), IL- 1β (N), GSDMD (O), RIPK1 (P), RIPK3 (Q), MLKL (R), PPM1B (S), ADAM17 (T), TRPM7 (U), HMGB1 (V), TBK1 (Y) and PQBP1 (Z) in CE of SIV-infected RMs. Heat maps showing the DMSs in MB21D1 CGI in VEH/SIV (W1), and THC/SIV (W2) compared to control or in VEH/SIV relative to THC/SIV RMs (W3). Cumulative β-values of MB21D1 paCGI in THC/SIV (X1) relative to control and in VEH/SIV compared to THC/SIV RMs (X2). White arrows in panel A indicate nuclear sequestration and those in B, and C indicate cytoplasmic translocation of NLRP6 protein in response to polyI:C or polyI:C and LTA treatments. Immunofluorescence data were analyzed using one-way ANOVA followed by Tukey’s multiple comparison post-hoc test. A p-value of ≤ 0.05 was considered significant. Controls refer to uninfected controls

THC-induced NLRP6 promoter hypermethylation associated with reduced necroptosis-driving gene signature in the CE of SIV-infected RMs

Although CASP1 and IL18 mRNA expression was significantly upregulated in the CE of both VEH/SIV and THC/SIV RMs, the significantly decreased GSDMD mRNA expression in both groups suggested that pyroptosis may not be the predominant pathway driving CE dysfunction. Nevertheless, NLRP6 has been shown to increase the expression of mixed lineage kinase domain like pseudokinase protein (MLKL) and receptor-interacting serine/threonine-protein kinase-3 (RIPK3) to induce necroptosis [50], a caspase-independent inflammatory mode of cell death. Interestingly, by again mining our recently published microarray data [36] for genes that showed differential expression by at least 1.5-fold change and an adjusted p≤ 0.05 confirmed statistically significant upregulation of RIPK1, RIPK3, and MLKL in CE of VEH/SIV RMs (Fig. 4P-R). While expression of RIPK1 mRNA showed statistically significant increase in both groups (Fig. 4P), mRNA expression of RIPK3 and MLKL showed statistically significant increase only in CE of VEH/SIV (Fig. 4Q and R) compared to control RMs. Moreover, RIPK3, phosphorylated on Ser227 and Ser199, plays a crucial role in the activation of MLKL by phosphorylating it on Thr357 and Ser358 to enable its loading onto the necrosome [51]. In this context, PPM1B, a phosphatase known to dephosphorylate RIPK3 [51] was also significantly upregulated only in CE of VEH/SIV RMs (Fig. 4S), indirectly suggesting the presence of p-RIPK3. Most strikingly, mRNA expression of ADAM17 (Fig. 4T), a positive regulator of necroptosis [52], TRPM7 (Fig. 4U), a downstream target of MLKL that promotes its membrane localization and Ca²⁺ ion influx for initiating necroptosis [53], and HMGB1 (Fig. 4V), a danger-associated molecular pattern (DAMP) protein, known to propagate inflammation associated with both pyroptotic and necroptotic cell death [54] was significantly increased only in CE of VEH/SIV RMs.

We previously reported significantly reduced interferon (IFN)-stimulated gene expression (ISG) in the whole colon [31], CE [36] and basal ganglia (brain) [10] of THC/SIV RMs. Nevertheless, the mechanism of THC action remained unknown. MB21D1, or cGAS, is an important DNA sensor that drives type-I IFN responses [55]. In this context, within the MB21D1 CGI (Figure S4A), VEH/SIV RMs showed a total of 4 DMSs (Fig. 4W1), relative to controls. These included three hypomethylated (Fig. 4W1) and one hypermethylated site. Within the paCGI, two sites were hypomethylated (green arrows in Fig. 4W1) and one hypermethylated (red arrow in Fig. 4W1). Relative to controls, THC/SIV RMs showed a significantly higher number of DMSs in MB21D1 CGI than seen in VEH/SIV RMs, with a total of 13 DMSs (Fig. 4W2). Out of these, nine sites, all in the paCGI region, were hypermethylated (boxed region and red curly bracket in Fig. 4W2), and four were hypomethylated (green curly bracket in Fig. 4W2). Lastly, when compared to THC/SIV, VEH/SIV RMs had six DMSs in the CGI of MB21D1 (Fig. 4W3), all of which were in the paCGI region (boxed region in Fig. 4W3). The average ∆β-value in the paCGI of MB21D1 was not significantly different in VEH/SIV relative to controls (Figure S4B). In contrast, there was a significant increase in the ∆β-value of CpG sites of MB21D1 paCGI in THC/SIV compared to controls (Fig. 4X1) and VEH/SIV (Fig. 4X2) RMs. Further, the expression of TBK1, a signaling adapter protein that transduces the signal emanating from MB21D1 [56], was significantly increased in CE of VEH/SIV but not THC/SIV RMs (Fig. 4Y). Finally, PQBP1, a proximal sensor of MB21D1-dependent increase in type-I IFN response to HIV- 1 infection [57], was also significantly increased in CE of VEH/SIV but not THC/SIV RMs (Fig. 4Z).

Protein expression of necroptosis mediators p-RIPK3(Ser199), p-MLKL(Thr357/Ser358), and HMGB1 is significantly increased in the intestinal epithelium of SIV-infected RMs

Activated RIPK1 promotes RIPK3 phosphorylation, which then autophosphorylates itself on Ser199 (required for kinase function) and Ser227 (required for necroptosis), two sites crucial for the activation of MLKL. Interestingly, p-RIPK3(Ser199) showed significantly higher expression in CE of both ART-naïve VEH/SIV and THC/SIV relative to control RMs (Fig. 5A to D) but not in ART-experienced RMs (Figure S4C- 4F). In this context, protein expression of PPM1B, a phosphatase that inactivates RIPK3 by dephosphorylation, was significantly increased in CE of both ART-naïve VEH/SIV and THC/SIV relative to control RMs (Fig. 5E to H) but not in ART-experienced RMs (Figure S4G- 4 J). The high expression of PPM1B indirectly indicates the presence of activated p-RIPK3. Note that for both p-RIPK3(Ser199) and PPM1B, protein expression was slightly higher in VEH/SIV than THC/SIV relative to control RMs.

Fig. 5

Chronic THC administration reduced HIV/SIV infection-induced RIPK3(Ser199), PPM1B, p-MLKL(Thr357) protein expression in the intestine. p-RIPK3(Ser199) (red) (A-C), PPM1B (E-G) (green) and p-MLKL(Thr357) (green) (I-K) protein expression in colon tissues of uninfected control (A, E&I), VEH/SIV (B, F&J), and THC/SIVRMs (C, G&K). p-MLKL(Thr357) (green) protein expression in jejunum tissues before SIV infection (M) and at 5 months post SIV infection in ART suppressed VEH/SIV (N) and THC/SIV (O) RMs. Representative immunofluorescence images were captured using a Zeiss confocal microscope at 20X magnification. Quantitation of p-RIPK3(Ser199) (D), PPM1B (H) and p-MLKL(Thr357) (L&P) average positive area fluorescence in colon and jejunum epithelium was performed using the HALO software. Note the significantly reduced p-MLKL(Thr357) staining in the colon and jejunum epithelium of THC/SIV (K, O, L&P) compared to VEH/SIV (J, N, L &P) RMs. White arrows in panels I to K and M to O indicate epithelial regions. Immunofluorescence data were analyzed using one-way ANOVA followed by Tukey’s multiple comparison post-hoc test. A p-value of ≤ 0.05 was considered significant. Controls refer to uninfected controls

Consistent with high MLKL mRNA expression in the CE of VEH/SIV RMs, protein expression of p-MLKL(Thr357), a marker of necroptosis, was significantly upregulated with intense cytoplasmic expression in CE of ART-naïve (Fig. 5J and L) and ART-experienced VEH/SIV (Fig. 5N and P) relative to controls (Fig. 5I and M) RMs. p-MLKL(Thr357) expression in CE of THC/SIV RMs was significantly higher than in controls (Fig. 5K and L). Most notably, p-MLKL(Thr357) protein expression was significantly reduced in CE of THC/SIV compared to VEH/SIV RMs in both ART-naïve (Fig. 5K and L) and ART-experienced RMs (Fig. 5O and P).

Likewise, p-MLKL(Ser358) protein expression was significantly increased in CE of both VEH/SIV and THC/SIV relative to control RMs (Fig. 6A to D). Similar to p-MLKL(Thr357), protein expression of p-MLKL(Ser358) was more intense in the cytoplasm of VEH/SIV but not in THC/SIV compared to control RMs (Fig. 6B and C). Notably, at 5 MPI, p-MLKL(Ser358) protein expression was significantly reduced in THC/SIV/ART compared to VEH/SIV/ART RMs (Fig. 6F, G, and H). While no significant differences in protein expression of p-RIPK3(Ser199) were detected in the jejunum of SIV/ART RMs, it is possible that p-RIPK3(Ser227) [51] and the Tam family of receptor tyrosine kinases [58] may be the predominant kinases phosphorylating MLKL in the jejunum. Finally, expression of HMGB1, an important DAMP released upon pyroptotic and necroptotic cell death and an initiator of secondary inflammatory responses in neighboring cells [59], showed a marked but statistically non-significant reduction in CE of ART-naïve THC/SIV RMs compared to VEH/SIV RMs (Fig. 6I to L). Nevertheless, unlike colon, protein expression of HMGB1 was significantly increased in the jejunum epithelium of VEH/SIV/ART RMs compared to pre-infection and THC/SIV/ART RMs (Fig. 6M to P). Note the restoration of HMGB1 protein expression to pre-infection levels by low-dose THC at 5 MPI (Fig. 6P). These findings demonstrate, for the first time, the activation of necroptosis and its contribution to intestinal dysfunction in HIV/SIV infection under suppressive ART and provide novel clinically relevant insights into how low-dose phytocannabinoids, possibly through epigenetic modulation of NLRP6, can reduce necroptosis signaling potentially via modulation of the RIPK3-MLKL pathway (Fig. 7) that may help reduce intestinal inflammation in PLWH and, by extension, IBD patients.

Fig. 6

Chronic THC administered in combination with ART significantly reduced HIV/SIV infection induced p-MLKL(Ser358) and HMGB1 protein expression in the intestine. p-MLKL(Ser358) (green) (A-C), and HMGB1 (green) (I-K) protein expression in colon tissues of uninfected control (A&I), VEH/SIV (B&J), and THC/SIV (C&K) RMs. p-MLKL(Ser358) (green) (E-G) and HMGB1 (green) (M-O) expression in jejunum tissues before SIV infection (E&M) and at 5 months post SIV infection in ART suppressed VEH/SIV (F&N) and THC/SIV (G&O) RMs. Representative immunofluorescence images were captured using a Zeiss confocal microscope at 20X magnification. Quantitation of p-MLKL(Ser358) (D&H), and HMGB1 (L&P) average positive area fluorescence in colon and jejunum epithelium was performed using the HALO software. Note the significantly reduced p-MLKL(Ser358) and HMGB1 staining in the jejunum epithelium of ART suppressed THC/SIV (G, O, H&P) compared to VEH/SIV (F, N, H&P) RMs. White arrows in panels A to G indicate epithelial regions. Immunofluorescence data were analyzed using one-way ANOVA followed by Tukey’s multiple comparison post hoc test. A p-value of < 0.05 was considered significant. Controls refer to uninfected controls

Fig. 7

HIV/SIV infection-induced DNA hypomethylation facilitates persistent activation of the NLRP6 sensor and cGAS/MB21D1 protein expression in the intestinal epithelium, leading to epithelial barrier breakdown and microbial translocation (A). Long-term low-dose THC epigenetically modulates these changes by hypermethylating CpG sites in the NLRP6 and cGAS promoters, thereby reducing gastrointestinal mucosal injury (B). NLRP6 inflammasome assembly could potentially activate the RIPK1-RIPK3-MLKL pathway to induce necroptosis of intestinal epithelium (C). TLR3 (Figure S4 K) and NLRP6-DHX15 viral sensing complexes could recognize dsRNA intermediates of HIV, leading to the phosphorylation of RIPK1, which in turn activates RIPK3, culminating in the activation of the necroptosis executioner protein MLKL through phosphorylation on Thr357 and Ser358 (C). Activation of MLKL and concurrent activation of the calcium ion channel TRPM7 enhances intracellular Ca++ influx, leading to necroptotic cell death (D). Cell death facilitates the release and extracellular accumulation of the DAMP protein, HMGB1, which can propagate secondary inflammatory responses by attracting neutrophils and macrophages leading to more widespread epithelial damage (D). By hypermethylating the NLRP6 promoter and increasing expression of the deubiquitinase CYLD, long-term low-dose THC could potentially block the downstream activation of the RIPK1-RIPK3-MLKL pathway and significantly reduce HMGB1 protein expression to attenuate gastrointestinal inflammation and preserve epithelial barrier integrity. Straight and curved arrows denote upregulation or activation, and T-shaped lines indicate inhibition or blockade. Figures were generated using Biorender

Discussion

Intestinal epithelial barrier disruption, triggered by mucosal immune dysfunction, is a common sequela to HIV/SIV infection despite peripheral viral suppression by ART, which leads to systemic inflammation, a major contributor to HIV-associated comorbidities [1]. Persistent intestinal inflammation can trigger and sustain the accumulation of epigenetic modifications, particularly alterations in levels of promoter DNA methylation in genes linked to epithelial proliferation [15], leading to enterocyte senescence, epithelial barrier dysfunction, and dysbiosis [60]. Nevertheless, epigenetic control of epithelial barrier function in HIV/SIV infection remains an understudied topic. In this context, chronic intestinal inflammation and epigenetic alterations involving DNA methylation in gene promoters, together with transcriptome changes in intestinal epithelial cells, have been associated with IBD pathogenesis [61]. Moreover, since epigenetic signatures are cell type-specific, separating out enough purified epithelial cells from human colorectal pinch biopsies (maximum n=3 biopsies) is challenging. The feasibility of obtaining intact colon resections (~5 cm) without major adverse effects from SIV-infected RMs allows the isolation of ~85–95% pure epithelial cells and offers unique avenues to identify epigenetically altered genes involved in critical GI mucosal abnormalities. While we found significant global hypomethylation throughout the whole genome during chronic SIV infection, chronic low-dose phytocannabinoid (THC) administration caused significantly more hypermethylation and effectively increased methylation in paCGIs of genes associated with the inflammatory response (NLRP6, MB21D1, LEP), cellular adhesion (CDH7), and colonic epithelial cell proliferation (SFRP1 and TERT).

HIV/SIV infection resulted in a significant decrease in methylation levels throughout the genome and specifically in paCGIs. Strikingly, chronic low-dose THC administration caused significantly more changes in methylation, both hypo- and hyper- methylation, than that observed in VEH/SIV RMs compared to uninfected controls. Remarkably, hypomethylation of just one DMS in the paCGI had an influence on gene expression (upregulation). This finding leads us to speculate that the traditional idea of methylation being inversely correlated to gene expression is gene location specific. While the paCGIs are regulatory regions, methylation changes in enhancer regions might have more influence on gene expression than paCGIs [62, 63]. Interestingly, methylation changes that occurred outside of a gene region or mapped to an unannotated region were found to be in gene enhancers, which potentially could influence gene expression [63]. Since our analysis only looked for DMSs within a CGI, and if it was in a gene promoter, exon, or intron, we could not determine if the ~86% of unannotated sites excluded from the analysis were a part of gene enhancers and the genes they regulated. Differential methylation of enhancers has been implicated in osteoarthritis, Alzheimer’s disease (AD), and multiple sclerosis [64]. Therefore, further studies to identify the unannotated DMSs that are an integral part of gene enhancers with potential role(s) in HIV/SIV-induced intestinal dysfunction is needed.

Significant hypomethylation detected in the paCGIs of genes associated with inflammation, cellular adhesion, oxidative stress, cell proliferation, and apoptosis in CE of VEH/SIV RMs suggests that alterations in the epigenetic landscape may facilitate their increased expression, leading to the persistence of a proinflammatory environment. These findings are consistent with increasing evidence pointing towards an association between DNA hypomethylation and increased expression of proinflammatory genes (76–78), leading to oxidative DNA damage, epithelial cellular senescence, barrier dysfunction, microbial translocation, and systemic inflammation. Interestingly, compared to controls, THC/SIV RMs had significantly more hypermethylation in the paCGI region of genes associated with inflammatory responses, cellular adhesion, and colonic epithelial cell proliferation, specifically NLRP6, CDH7, SFRP1, and TERT. These genes showed increased methylation levels in CE of THC/SIV compared to control RMs that accounted for ~4–23% of CpG sites in their respective CGIs, and the average methylation difference from all methylation changes in these genes was ~ 18%. More importantly, THC hypermethylated promoter CpG sites of MB21D1, also known as cGAS, which interacts with PQBP1 following its binding to retroviral reverse transcribed DNA in the cytosol to activate the cGAS-STING pathway, leading to increased type-I interferon (IFN) production. Interestingly, in addition to promoter CpG hypermethylation of MB21D1, PQBP1 gene expression was also significantly reduced in the CE of THE/SIV RMs, which may partly explain the reduced type-I interferon gene expression in the CE of THC/SIV RMs we reported previously [31, 36], suggesting that phytocannabinoids are effective in inhibiting cGAS-STING signaling, a pathway hyperactivated in ulcerative colitis leading to dysregulated intestinal epithelial cell integrity, autophagy, and immune/inflammatory responses [55]. Interestingly, gene ontology analysis identified significant hypomethylation of genes that regulate oxidative stress-induced cell death and autophagy in CE of THC/SIV RMs. While cannabinoids are well-known to induce autophagy pathways to reduce chronic inflammatory responses [65], our novel findings demonstrate the involvement of epigenetic mechanisms underlying the enhancement of autophagy (promoter DNA hypomethylation) via reduction of MB21D1-mediated type-I IFN expression (promoter DNA hypermethylation) by cannabinoids. Thus, epigenetic modulation represents a key mechanism by which phytocannabinoids alter inflammatory signaling/response, epithelial cell adhesion and proliferation, and autophagy in HIV/SIV infection.

When focusing on epigenetic changes in genes that regulate epithelial barrier maintenance and homeostasis, inflammasome components and sensors, particularly, NLRP6, stood out prominently. A critical function of NLRP6 is to protect the intestinal epithelial barrier from invading microbes or viruses, where it shows the highest expression [66, 67]. NLRP6 is thought to regulate intestinal microbiome homeostasis through its ability to activate other proinflammatory and antimicrobial genes [46, 50, 66, 68]. In return, the gut microbiome modulates NLRP6 inflammasome through their microbial metabolites, prompting NLRP6 to activate the production of antimicrobial peptides by intestinal epithelial cells (paneth cells) or triggering goblet cells to induce mucin exocytosis [48, 66]. While NLRP6 has been shown to maintain intestinal homeostasis, its perpetual activation due to inadequate regulation, as previously shown in active ileal Crohn’s disease (CD) (131-fold high) and colonic CD patients (3.9-fold high) [69], can exacerbate inflammation, leading to gastrointestinal disease and even cancer. Quite unexpectedly, we did not see a change in NLRP6 mRNA expression in either SIV-infected RM group compared to uninfected controls or to each other. Aberrant hypomethylation of NLRP6 can expedite inflammasome assembly, thereby activating inflammatory signaling pathways leading to CE apoptosis, as seen in Kawasaki disease (KD). Increased NLRP4, NLRP12, and IL- 1β gene expression in KD patients was accompanied by hypomethylation of NLRP4 and NLRP12 [70]. Interestingly, treatment with intravenous immunoglobulin restored the gene expression and methylation levels of NLRP4, NLRP12, and IL- 1β. In the present study, we show that chronic SIV-infection in ART-naïve RMs neither caused significant hypomethylation changes to NLRP6 paCGI (2 CpG sites compared to controls and 3 CpG sites compared to THC/SIV RMs) nor increased protein expression significantly in CEs, compared to controls. Nevertheless, hypomethylation of six other CpG sites in the exons and introns may impact NLRP6 expression. Contrariwise, chronic administration of low-dose THC to chronically SIV-infected RMs resulted in a significant hypermethylation of the NLRP6 paCGI compared to controls, which resulted in markedly decreased NLRP6 protein expression in the epithelium and lamina propria cells compared to both control and VEH/SIV RMs.

The decrease in NLRP6 protein expression through hypermethylation was an interesting finding that led us to question the effect of ART on NLRP6 expression. During acute HIV/SIV infection (1 MPI), there was a significant increase in NLRP6 protein expression in the jejunum epithelium, with ART initiated 2 weeks post infection. Noteworthy, at the chronic stage of HIV/SIV infection (5 MPI), after viral suppression for ~ 4.5 months, ART alone had no effect on NLRP6 expression. However, and most importantly, phytocannabinoid administration, in combination with ART, resulted in significantly decreased NLRP6 protein expression in chronically infected RMs, bringing NLRP6 protein expression down to pre-infection levels. The significantly high NLRP6 protein expression detected in the jejunum of THC/SIV/ART RMs at 1 MPI despite initiating THC before SIV infection suggests that phytocannabinoids may produce better anti-inflammatory effects when administered in combination with ART. The successful lowering of NLRP6 protein expression at 5 MPI also demonstrates that ART alone, regardless of undetectable viral loads in plasma and tissues, is not sufficient to restore intestinal homeostasis, but long-term, low-dose phytocannabinoids could be used as an adjunct to ART to reduce damaging intestinal inflammatory responses that persist in PLWH. Folate produced by Lactobacillus and Bifidobacteria, also shown to be reduced in IBD can affect host cellular DNA methylation, by regulating the methyl donor availability. The increased methylation levels detected in THC/SIV RMs may be driven by the increased relative abundance of Lactobacillus (n=28) and Bifidobacterium (n=18) species we recently demonstrated [10], both of which are commensal microbes that synthesize folate for methyl group donation [71]. As emphasized by Xu et al. [61] and Allen et al. [72], the interaction between gut microbes and host epigenetics should not only be studied further but also therapeutically targeted for HIV, IBD, and colorectal cancer therapy. Based on our findings, phytocannabinoids may offer a relatively safer and effective therapeutic option to modulate gut microbe-host epigenetic interactions in people with IBD and HIV.

Increased NLRP6 expression in VEH/SIV RMs could be activated from the basolateral side by dsRNA intermediates formed during the HIV replication cycle along with LTA from dysbiotic gut bacteria. Such activation is strongly supported by the significantly high mRNA expression of DHX15, an RNA helicase that cooperates with NLRP6 to recognize dsRNA and subsequently activate ISG expression through the mitochondrial antiviral signaling protein to exert antiviral effects. Promoter DNA hypermethylation coupled with significantly high CYLD mRNA expression in the CE of THC/SIV RMs suggests that phytocannabinoids can act upstream at the level of the DNA to reduce NLRP6 gene/protein expression and downstream by upregulating CYLD to deubiquitylate and reduce NLRP6 protein activity. Further evidence supporting THC’s ability to inhibit NLRP6 activation comes from our recently published studies [31, 36] describing significantly reduced mRNA expression of several ISGs and defensins, antimicrobial peptides produced by Paneth cells under the regulatory control of NLRP6.

Although NLRP6 has been described to activate both pyroptosis and necroptosis [50], the significantly high mRNA expression of RIPK1, RIPK3, MLKL, PPM1B, TRPM7, ADAM17, and HMGB1 suggested that necroptosis is likely the dominant cell death pathway potentially activated by NLRP6 in the CE. Further, significantly high protein expression of p-RIPK3(Ser199) and p-MLKL(Thr357/Ser358) together with increased protein expression of HMGB1, provided strong evidence for the activation of necroptosis. More strikingly, excessive activation of proteins associated with the necroptosis pathway was detected in the intestine even when SIV replication was effectively suppressed by ART. As the terminal and crucial mediator of necroptosis, the significantly high expression of p-MLKL(Thr357/Ser358) to our knowledge, for the first time, identifies necroptosis as an important mechanism that could potentially drive intestinal epithelial barrier disruption in PLWH on suppressive ART. Furthermore, the presence of high HMGB1 protein expression means that necroptotic cell death could release HMGB1 into the extracellular space thereby activating and further amplifying secondary inflammatory responses leading to more widespread epithelial damage. Most importantly, the reduced mRNA and protein expression of necroptosis-associated proteins in the intestinal epithelium of ART-naïve and experienced THC/SIV RMs may be a direct consequence of downregulating NLRP6 (potentially other inflammasome sensors too) protein expression via promoter hypermethylation (upstream) and its functional activity by promoting its deubiquitylation through upregulating CYLD (downstream) (Fig. 7). Given that the MB21D1 or cGAS-STING pathway also activates necroptosis[56], THC-induced hypermethylation of MB21D1 provides an additional layer of protection against necroptosis. Although GSDMD mRNA was downregulated in both SIV groups, the high CASP1 and IL- 18 mRNA expression needs further investigation and suggests the potential for a crosstalk between pyroptosis, necroptosis and apoptosis, which is now collectively called PANoptosis.

Despite these clinically relevant findings, our study does have limitations. First, statistically significant NLRP6 upregulation was not detected in the colon of ART-naïve RMs. This may be attributed to the variation associated with between-group cross-sectional sampling performed on multiple animals at a single time point. However, in the ART-treated cohort, the collection of surgical intestinal resections from the same animals before and after SIV infection allowed the longitudinal detection of increased NLRP6 protein expression during acute infection that continued to remain high into the chronic stage despite viral suppression by ART. Our data also confirmed stronger NLRP6 expression in the jejunum than the colon and therefore should receive more scrutiny in the future. From a functional perspective, persistent NLRP6 and necroptosis activation in the jejunum could be more detrimental as it could interfere with nutrient and ART drug absorption, leading to incomplete viral suppression, increased systemic inflammation, and malnutrition. Moreover, the use of bulk CE made it impossible to tease apart the specific enterocyte populations that were most impacted by the methylation changes. Our future studies will utilize single-cell multiomics to investigate cell type-specific differences in gene expression and chromatin accessibility changes within the same cell population.

In conclusion, our findings provide an unprecedented insight into the epigenetic mechanisms regulating aberrant CE gene expression in chronic SIV infection, particularly in the paCGIs of CE genes, that impact inflammatory responses, cellular adhesions, and CE proliferation, including gene expression changes in the machinery responsible for these methylation changes. Due to the heritable nature of epigenetic marks, we postulate that these changes might partly explain a potential mechanism that drives chronic intestinal inflammation and barrier dysfunction in PLWH. Given the absence of FDA-approved inhibitors of NLRP6, phytocannabinoids such as low-dose THC may offer a safe, feasible, inexpensive, and effective strategy to modulate inflammasome formation via epigenetic alteration of inflammasome sensors (i.e., NLRP6). Accordingly, modulation of inflammasome activation and downstream inhibition of necroptosis in the intestine as a therapeutic modality will benefit not only PLWH but also those suffering from other chronic inflammatory diseases like IBD [73, 74]. The important finding that CBD also blocked NLRP6 protein upregulation in vitro indicates its potential use as an alternative to THC and presents the opportunity to be combined with THC in appropriate ratios to reduce the psychotropic effects of THC while blocking NLRP6 hyperactivation. It is imperative that the hypermethylation of NLRP6 and MB21D1 not be deemed too detrimental to intestinal homeostasis, as such a therapeutic approach may be needed to suppress persistent intestinal inflammation in PLWH and IBD. Nevertheless, given the reversible nature of epigenetic changes, discontinuation of phytocannabinoids alone after inflammation resolution should lead to restoration of normal methylation levels.
